Diagnostic tool needs:
Lexia 3 V48 with Diagbox V7.57 diagnostic tool
Computer requirement:
A laptop running Windows XP home
Main procedure:
Ⅰ Key programming procedure
Ⅱ Synchronization of HF PLIP remote controls
NOTE:
The vehicle keys are allocated to a single BSI. Vehicle keys are located to the new and old key and than have them installed on a situation. Initializing a new key will require all the keys to be initialized.
Ⅰ Key programming procedure
1) Register the keys
2) Initializing a new key procedure
1. After well installed and activate the Lexia 3 Diagbox V7.57 software, come to the main program
2. Select "DIAGNOSIS" function in the main menu
3. Select vehicle model in Vehicle Selection menu
4. Select "GLOBAL TEST"
5. Select "BSI ECU"
6. Select "INITIALISATION"
7. Select "KEY INITIALISATION"
Follow the instructions given in the OBD diagnostic tool Daigbox software.
NOTE:
The "PARAMETER MEASURES" menu can be used to check the number of keys initialized. The number of keys initialized indicates the total number of vehicle keys. The number of HF PLIPS initialized indicates the number of HF keys initialized.
Ⅱ Synchronization of HF PLIP remote controls
When replacing the batteries of an HF PLIP remote control, it is necessary to resynchronize the remote control.
1) Put the HF key to be synchronized in position "ignition +"
2) Press one of the HF key buttons within the next 10 seconds
3) Release the HF key button
4) The ignition key HF PLIP is synchronized.
5) Repeat and perform previous operations for the other keys equipped with HF remote control.
6) Perform a locking / unlocking test of the vehicle doors and tailgate. If the locking / unlocking test of the doors and tailgate fails, restart the synchronizations of all the ignition keys equipped with HF PLIPS.
Monday, March 21, 2016
Sunday, March 20, 2016
(Tested) Lexi3 PP2000 Diagbox for Peugeot and Citroen vehicle model coverage
Having been playing around lexia 3 diagnostic tool for PSA groups, I have tested successfully on lots of Citroens and Peugeots. Since there is no detail function and vehicle list on the webpage (as list where mine from), I should be first one.
My Lexia 3 PP2000 OBDⅡtool: $79 from UOBD2
Package includes:
Lexia 3 (full adaptors) and 30 PIN connector
PSA: Lexia -3 protocol K+CAN, Citroen, Peugeot 1995-2010
PSA: Lexia -3 30 PIN connector before 1996
Software version:
Lexia 3 V45
PP2000 V25
Diagbox V5.75
Lexia 3 diagnostic tool function achieves:
1. Read/ Erase trouble codes
Display all stored and pending faults codes with full description, e.g “Rail pressure-too low pressure”
Program support report or copy to clipboard
2. Read identification
Displays full identification if ECU control units, e.g part number, software/hardware version
3. Auto scan
Detect all ECU control units in the car and read diagnostic faults codes
4. Actuator test / customize settings
Activates particular actuators, like lock/unlock wheel, lock/unlock door, enable fuel pump etc
5. Programming functions
Lexia 3 is able to access multi-system, like engine, transmission, brake, airbag, immobilizer, body to proceed configuration programming
6. Measured values
Display live data, like engine speed, battery voltage, oxygen sensor, coolant temper,
7. Customize settings
Activate cruise control, disable DRL (daytime running lights), disable TPMS lights etc.
Tested vehicle models with Lexia 3 PP2000 diagbox
Citroen:
1995 Citroen XM 2.5 TD Norway
1998 Citroen XantiaⅡ2.0 16V Russia
1998 Citroen XM 2.0 TurboCT Portugal
2001 Citroen C5 HDi Portugal
2001 Citroen C5 2.0 HPi V16 Netherland
2001 Citroen Saxo 1.1 Finland
2001 Citroen 2.0 HDi 90hp Belarus
2001 Citroen 2.2 HDi Poland
2002 Citroen Evasion 2.0HDi RHW Belarus
2003 Citroen C3 1.4 Auto UK
2003 Citroen Xsara Picasso 1.8 16V Netherland
2003 Citroen Xsara Picasso 1.8 16V SX Finland
2004 Citroen Xsara 1.6 V16 110hp Belarus
2007 Citroen C5 2.0 HDi Hungary
2008 Citroen C3 1.4 Finland
2009 Citroen C4 1.6 THP Greece
2010 Citroen C4 HDi Argentina
Peugeot Planet 2000 for Peugeot:
1997 Peugeot 406 1.8i XU7JP4 Belarus
1998 Peugeot 106 Electric Norway
1999 Peugeot 406 2.0 HDi 90hp Belarus
2001 Peugeot 206 XR 1.6 V8 Argentina
2001 Peugeot 406 2.0 HDi 110hp Belarus
2001 Peugeot 406 2.2 HDi Finland
2001 Peugeot 607 2.2 HDi Diesel Ireland
2002 Peugeot 206 Petrol Russia
2002 Peugeot 307 2.0HDi Finland
2002 Peugeot 406 1.8i EW7J4 Belarus
2003 Peugeot 406 2.0 HDi 110hp Belarus
2003 Peugeot 307 1.6 XS Petrol Malaysia
2004 Peugeot 307 1.6 HDi SXI 56 UK
2005 Peugeot 307 2.0 HDi SW 100Kw V16 Austria
2006 Peugeot 407 2.0 HDi UK
2007 Peugeot 207 1.6 V16 Argentina
2007 Peugeot 307 1.6 Hdi Finland
2010 Peugeot 307 1.6 V16 Argentina
ALL the test results are based on Lexia 3 V45, the latest V48 adds more model possibility, especially Peugeot 307. Because V45 works week on Pug 307 module.
My Lexia 3 PP2000 OBDⅡtool: $79 from UOBD2
Package includes:
Lexia 3 (full adaptors) and 30 PIN connector
PSA: Lexia -3 protocol K+CAN, Citroen, Peugeot 1995-2010
PSA: Lexia -3 30 PIN connector before 1996
Lexia 3 V45
PP2000 V25
Diagbox V5.75
Lexia 3 diagnostic tool function achieves:
1. Read/ Erase trouble codes
Display all stored and pending faults codes with full description, e.g “Rail pressure-too low pressure”
Program support report or copy to clipboard
2. Read identification
Displays full identification if ECU control units, e.g part number, software/hardware version
3. Auto scan
Detect all ECU control units in the car and read diagnostic faults codes
4. Actuator test / customize settings
Activates particular actuators, like lock/unlock wheel, lock/unlock door, enable fuel pump etc
5. Programming functions
Lexia 3 is able to access multi-system, like engine, transmission, brake, airbag, immobilizer, body to proceed configuration programming
6. Measured values
Display live data, like engine speed, battery voltage, oxygen sensor, coolant temper,
7. Customize settings
Activate cruise control, disable DRL (daytime running lights), disable TPMS lights etc.
Tested vehicle models with Lexia 3 PP2000 diagbox
Citroen:
1995 Citroen XM 2.5 TD Norway
1998 Citroen XantiaⅡ2.0 16V Russia
1998 Citroen XM 2.0 TurboCT Portugal
2001 Citroen C5 HDi Portugal
2001 Citroen C5 2.0 HPi V16 Netherland
2001 Citroen Saxo 1.1 Finland
2001 Citroen 2.0 HDi 90hp Belarus
2001 Citroen 2.2 HDi Poland
2002 Citroen Evasion 2.0HDi RHW Belarus
2003 Citroen C3 1.4 Auto UK
2003 Citroen Xsara Picasso 1.8 16V Netherland
2003 Citroen Xsara Picasso 1.8 16V SX Finland
2004 Citroen Xsara 1.6 V16 110hp Belarus
2007 Citroen C5 2.0 HDi Hungary
2008 Citroen C3 1.4 Finland
2009 Citroen C4 1.6 THP Greece
2010 Citroen C4 HDi Argentina
Peugeot Planet 2000 for Peugeot:
1997 Peugeot 406 1.8i XU7JP4 Belarus
1998 Peugeot 106 Electric Norway
1999 Peugeot 406 2.0 HDi 90hp Belarus
2001 Peugeot 206 XR 1.6 V8 Argentina
2001 Peugeot 406 2.0 HDi 110hp Belarus
2001 Peugeot 406 2.2 HDi Finland
2001 Peugeot 607 2.2 HDi Diesel Ireland
2002 Peugeot 206 Petrol Russia
2002 Peugeot 307 2.0HDi Finland
2002 Peugeot 406 1.8i EW7J4 Belarus
2003 Peugeot 406 2.0 HDi 110hp Belarus
2003 Peugeot 307 1.6 XS Petrol Malaysia
2004 Peugeot 307 1.6 HDi SXI 56 UK
2005 Peugeot 307 2.0 HDi SW 100Kw V16 Austria
2006 Peugeot 407 2.0 HDi UK
2007 Peugeot 207 1.6 V16 Argentina
2007 Peugeot 307 1.6 Hdi Finland
2010 Peugeot 307 1.6 V16 Argentina
ALL the test results are based on Lexia 3 V45, the latest V48 adds more model possibility, especially Peugeot 307. Because V45 works week on Pug 307 module.
How to solve Citroen and Peugeot Lexia 3 PP2000 central locking problem
Vehicle example:
Peugeot 307 2.0 HDi 2005
Diagnostic equipment:
Lexia 3 Peugeot Planet PP2000 for Citroen and Peugeot OBDⅡdiagnostic interface
Problem:
New Pug 307 comes with one original key, so I have to make a new backup key. Got a blank key and got the key cut and programmed with lexia 3 PP2000 diagnostic software. Then I have two new keys that can start the car.
The problem is I can't get the central locking bit to sync (key fob stopped working). At first I doubted the IGN+ position (with engine ON or OFF at the same time). Soon I figured out that I should leave the ignition switch ON without starting the engine.
I got a good key programming document with PP2000 and followed it step by step:
How to program Peugeot new key with Lexia3 PP2000 diagnostic tool
I was stopped at the learning transponder key procedure. I search around Pug forums and finally got the answer.
Solution:
The problem lies on the lexia 3 PCB.
There are different types of PCB on the aftermarket:
1. Original keys which works fine
2. Copy keys sometimes PCB sometimes does not work
3. Second hand keys PCB can not be programmed again
Make sure you get the correct PCB, take this one on uobdii.com
1. Lexia-3 PCB edge is golden with original full chips. Double PCB has 7pcs optocouplers, which are 100% original and new.
2. lexia-3 relays are 12pcs, which are 4.5V, it is more stable.
3. PP2000 has 2pcs Optocouplers.
Peugeot 307 2.0 HDi 2005
Diagnostic equipment:
Lexia 3 Peugeot Planet PP2000 for Citroen and Peugeot OBDⅡdiagnostic interface
Problem:
New Pug 307 comes with one original key, so I have to make a new backup key. Got a blank key and got the key cut and programmed with lexia 3 PP2000 diagnostic software. Then I have two new keys that can start the car.
The problem is I can't get the central locking bit to sync (key fob stopped working). At first I doubted the IGN+ position (with engine ON or OFF at the same time). Soon I figured out that I should leave the ignition switch ON without starting the engine.
I got a good key programming document with PP2000 and followed it step by step:
How to program Peugeot new key with Lexia3 PP2000 diagnostic tool
I was stopped at the learning transponder key procedure. I search around Pug forums and finally got the answer.
The problem lies on the lexia 3 PCB.
There are different types of PCB on the aftermarket:
1. Original keys which works fine
2. Copy keys sometimes PCB sometimes does not work
3. Second hand keys PCB can not be programmed again
Make sure you get the correct PCB, take this one on uobdii.com
1. Lexia-3 PCB edge is golden with original full chips. Double PCB has 7pcs optocouplers, which are 100% original and new.
2. lexia-3 relays are 12pcs, which are 4.5V, it is more stable.
3. PP2000 has 2pcs Optocouplers.
Saturday, March 19, 2016
How to activate Citroen Cruise Control with Lexia 3 Diagbox diagnostic too
Equipment:
Lexia 3 V48 PP2000V25 Diagbox V7.36 (the latest is V7.57) for Peugeot and Citroen diagnosis
Vehicle model Example
Citroen Berlingo
Activating Berlingo Cruise control instruction:
1)Install and activate Lexia 3 Diagbox software. Free download related user manual on uobdii.com webpage.
2)Come to the main menu, select vehicle brand as Citroen
3)Select vehicle model Berlingo-> Berlingo (B9)
4)Confirm the VIN read information and then click green tick icon to continue
5) Select DELIVERY OF VEHICLE TO CUSTOMER
6)Go down the next program and select ACCESSORY
7) Turn the ignition ON with engine off
8) Manually enter the vehicle’s RPO/DAM number
9) The DAM number is available on a sticker attached to the driver side front/rear door pillar which also includes tire pressures etc. Here the DAM number is 5-digit number marked red in picture below.

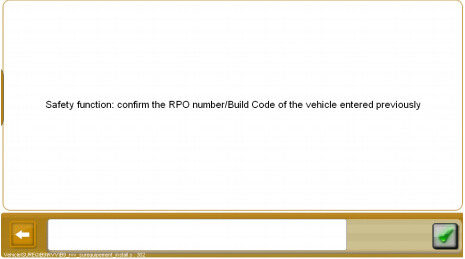

10) Confirm the PRO number or Build code of the vehicle entered previously and tick green icon.
11) Re-enter the vehicle’s RPO/DAM number
12) Switch off the ignition for 30 s and validate to continue.
13) The time is count down to 0.
14) Switch on the ignition switch after 30 s.
15) Switch off the ignition and wait for 15 s. Switch the ignition on again.
16) Cruise control for Citroen is complete
17) Hit Back icon to back to the main function menu and select other diagnostic functions.
18) Exit the Lexia 3 Diagbox diagnostic software program.
Lexia 3 V48 PP2000V25 Diagbox V7.36 (the latest is V7.57) for Peugeot and Citroen diagnosis
Vehicle model Example
Citroen Berlingo
Activating Berlingo Cruise control instruction:
1)Install and activate Lexia 3 Diagbox software. Free download related user manual on uobdii.com webpage.
2)Come to the main menu, select vehicle brand as Citroen
3)Select vehicle model Berlingo-> Berlingo (B9)
4)Confirm the VIN read information and then click green tick icon to continue
5) Select DELIVERY OF VEHICLE TO CUSTOMER
6)Go down the next program and select ACCESSORY
7) Turn the ignition ON with engine off
8) Manually enter the vehicle’s RPO/DAM number
9) The DAM number is available on a sticker attached to the driver side front/rear door pillar which also includes tire pressures etc. Here the DAM number is 5-digit number marked red in picture below.
10) Confirm the PRO number or Build code of the vehicle entered previously and tick green icon.
11) Re-enter the vehicle’s RPO/DAM number
12) Switch off the ignition for 30 s and validate to continue.
13) The time is count down to 0.
14) Switch on the ignition switch after 30 s.
15) Switch off the ignition and wait for 15 s. Switch the ignition on again.
16) Cruise control for Citroen is complete
17) Hit Back icon to back to the main function menu and select other diagnostic functions.
18) Exit the Lexia 3 Diagbox diagnostic software program.
How to disable Citroen DS3 DRLs with Lexia 3 Diagbox diagnostic tool
Lexia3 Diagbox is possible to erform various customize settings, disable day time running lights (DRLs) included. Latest Lexia3 V48 Diagbox V5.75 is available in eobd2.fr at a perfect price €65.
Here is the step-by-step guide of turning off DRLs with lexia 3 Diagbox diagnostic interface:
1. Install Lexia 3 Diagbox software
How to install Diagbox V7.57 for Lexia-3 PP2000 Citroen and Peugeot
2. Plug the lexia 3 diagnostic interface into the OBD socket
3. Select Citroen in Brand selection menu
4. Select vehicle model: DS3
Validate VIN (Check mark)
5. Select Diagbox application
6. Select Global Test
7. Select Diagnosis
8. Select Built-in System interface (BSI)
9. Scroll down to Vehicle Configuration, click OK
10. You will be able to view lists of customize settings, like hazard warning lamps, fog lamps day time running lamps etc.
Click Simultaneous illuminations of the day running lights and sides lights, change the status “yes” to “NO”
Daytime running lights are successfully disabled.
Lexia3 Diagbox is possible to erform various customize settings, disable day time running lights (DRLs) included. Latest Lexia3 V48 Diagbox V5.75 is available in eobd2.fr at a perfect price €65.
Here is the step-by-step guide of turning off DRLs with lexia 3 Diagbox diagnostic interface:
1. Install Lexia 3 Diagbox software
How to install Diagbox V7.57 for Lexia-3 PP2000 Citroen and Peugeot
2. Plug the lexia 3 diagnostic interface into the OBD socket
3. Select Citroen in Brand selection menu
4. Select vehicle model: DS3
Validate VIN (Check mark)
5. Select Diagbox application
6. Select Global Test
7. Select Diagnosis
8. Select Built-in System interface (BSI)
9. Scroll down to Vehicle Configuration, click OK
10. You will be able to view lists of customize settings, like hazard warning lamps, fog lamps day time running lamps etc.
Click Simultaneous illuminations of the day running lights and sides lights, change the status “yes” to “NO”
Daytime running lights are successfully disabled.
Subscribe to:
Posts (Atom)
